ANDRY – Pulley
Stock: Available
$ 18.00
A light-duty steel pulley designed to be used for tensioning safety nets.
For use with ropes up to 12 mm in diameter.
Efficiency: 70%.
Carbon steel body and axle, polyamide wheel.
Stock: Available
| Ref. | Product name | Weight | Inner sheave diameter | Rope diameter Max | Working load Max | Breaking load | Sheave material |  |
|||
| g | oz | mm | mm | kN | LBF | kN | LBF | EN 12278 | |||

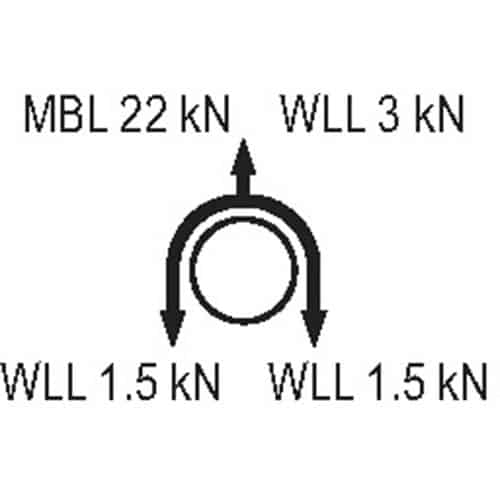

| 0108 | ANDRY | 100 | 3.5 | 26 | 12 | 1,5 kN x 2 = 3 kN | 337 LBF x 2 = 674 LBF | 22 | 4946 | Polyamide | • |
